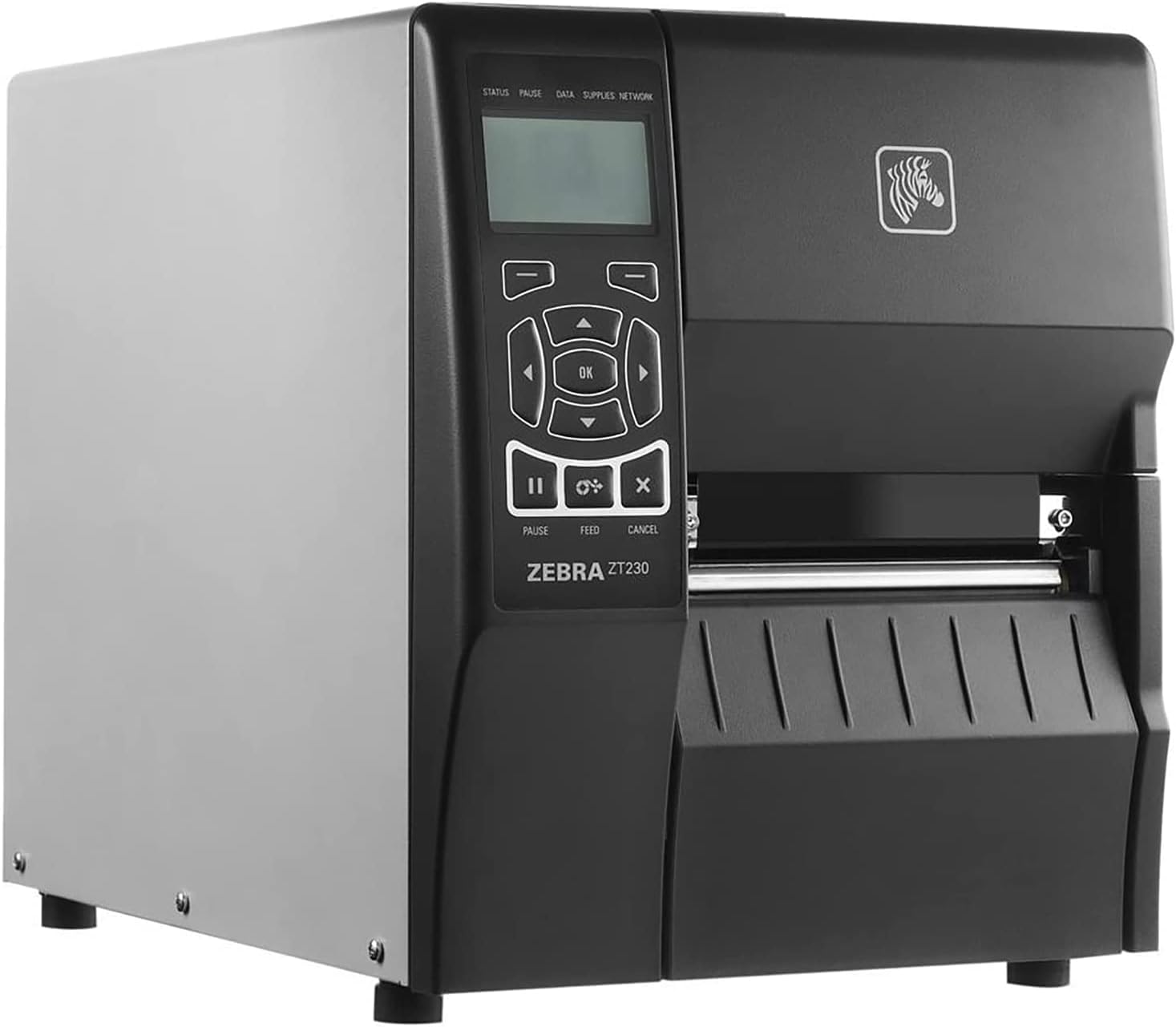

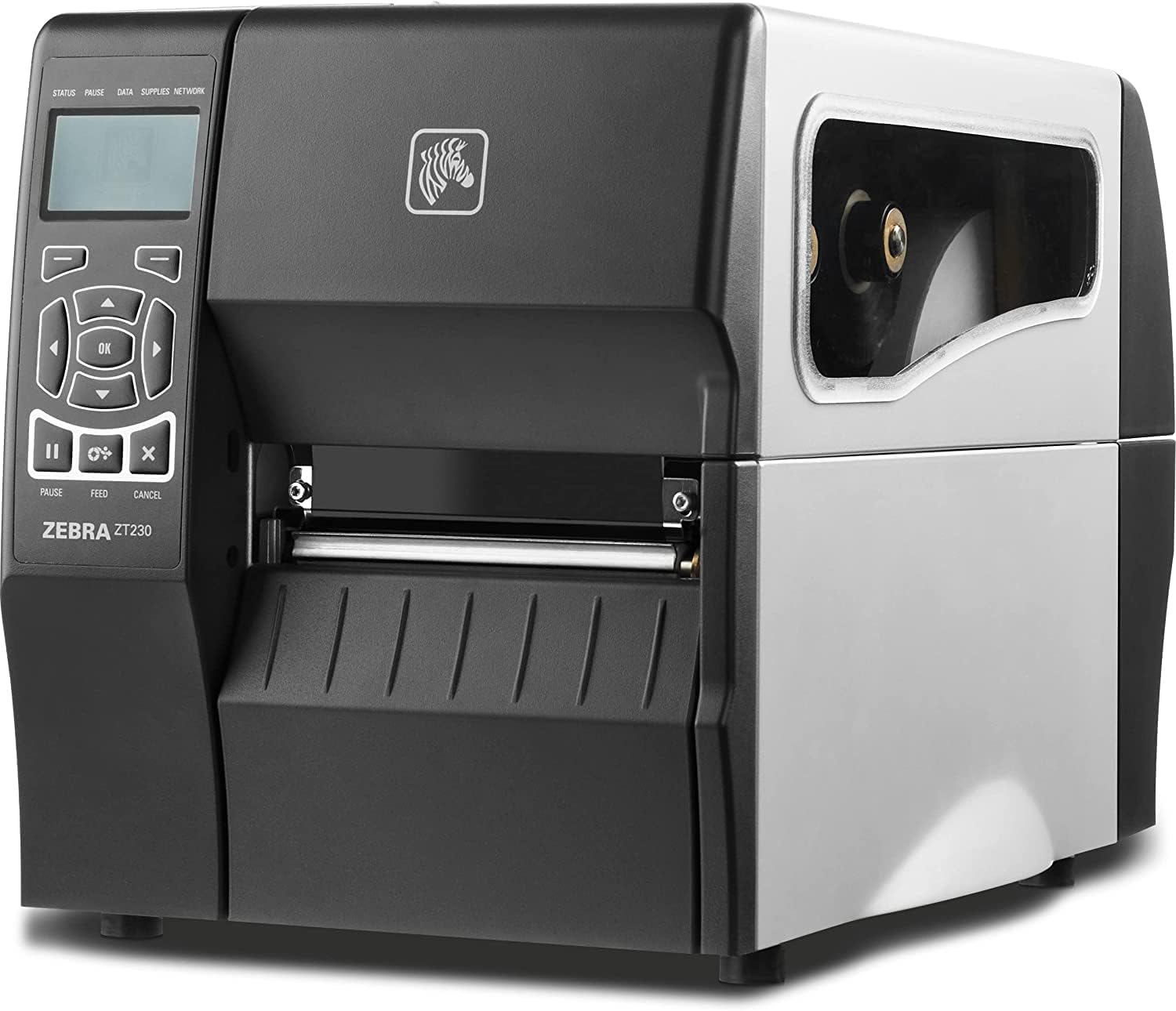

Black Thermal Transfer Barcode Label Printer, 203 dpi, 4-inch Print Width G13991
Black Thermal Transfer Barcode Label Printer, 203 dpi, 4-inch Print Width G13991
▲ Ribbon sold separately ▲ 203 dpi @ 6 ips; 32bit 400MHz, 128MB RAM/128MB Flash; Icon-based LCD multilingual graphical user interface & full function keypad; Rugged all-metal case for long-lasting use; Thermal Transfer core-to-core ribbon handling system.
Ribbon width: 1.57' to 4.33'; Max. ribbon length/roll size: 984'/2.7' OD on a 1' core; Thin film printhead w/ E3 Element Energy Equalizer; Dual media sensors, transmissive & reflective sensing technology, selectable through software or front panel.
Side-loading metal print mechanism w/ head-open lock withstands general wear & tear & facilitates media loading; Robust gold user touch points simplify operation by directing user to key areas for adjustment; Space saving design w/ unique bi-fold door (requires 4' of opening space); Tool-less platen & printhead removal for easy cleaning & replacement.
Virtual Devices apps enable Link-OS printers to support well-known legacy & competitor printer languages in addition to ZPL & EPL.
Package Contents: Zebra ZT230 Thermal Transfer and Direct Thermal Industrial Printer; US Power Cord; Tear Bar.
Printer Specifications
Resolution
203 dpi/8 dots per mm
Memory
128 MB SDRAM memory
128 MB on-board linear Flash memory
Maximum Print Width
4.09'/104 mm
Maximum Print Speed
6'/152 mm per second
Media Sensors
Transmissive and reflective sensors
Media Characteristics
Maximum label and liner width: 4.5'/114 mm
Maximum non-continuous label length:39'/991 mm
Media Width
0.75'/19.4 mm to 4.50'/114 mm
Print Length
203dpi: 157'/3,988 mm
300dpi: 73'/1,854 mm
Maximum Media Roll Size
8.0'/203 mm O.D on a 3.0'/76 mm I.D. core
6.0'/152 mm O.D. on a 1.0'/25 mm I.D. core
Media Thickness
0.003'/0.076 mm to 0.010'/0.25 mm
Media Types
Continuous, die-cut, notch, black mark
Barcode Symbologies
Linear barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN with 2 or 5 digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
2-Dimensional: Aztec, Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF417, TLC 39, RSS-14 (and composite)
Communication
ZebraNet a/b/g/n Print Server (internal)
ZebraNet 10/100 Print Server (internal or external)
Centronics Parallel port (internal)
Dimension
9.5 in. L x 10.9 in. W x 17 in. H
Weight
20 lbs./9.1 kg
